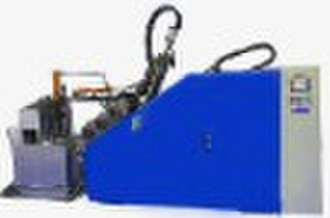

Automatic Grid Die Casting Machine of spine grid m

Automatic Grid Die Casting Machine The spine die-casting machine is the focus of companys product development, it is developed on the base of absorption of foreign equipments, and it is used to produce the spines for tubular positive plates. The spine die-casting machine got the certificate of new model patent and won the recognition and praise from the users on the market. Application: Used for die-casting the spines for positive plates, it is suitable for low antimony lead alloy (sb≤3%). Composition: Die-casting MachineMold lead melting potcontrol panel Spine length: ≤ 620 mm Capacity :2-3 pieces/minutes (gate tendons ≤ 200 mm 4-6 tablets / am) Lead melting pot: 1.5 T Cooling water :0.2-0.3 MPa Total power: 45 Kw Performance & Features It mainly uses hydraulic pressure with large force and smooth, the force of the hydraulic system is controlled with stepless regulator.. The lead melting pot is heated by electricity, and the temperature is auto-controlled and with a large adjustable range, the pot is insulated by light refractories. The nozzle and mould is heated with heating elements, and their temperatures are digital controlled and displayed, it will alarm if the temperature is too high. Circulating cooling water flow through the cooling system in the mould, the temperature of the mould is auto-controlled and adjustable. The mould is made of alloy with high strength and hardness to guarantee molding; the interlock safety devices is used to ensure safe production, the working cycle of mould closing, pressing, opening and ejecting is completed automatically. The touch screen and PLC are used to make programmable control for the machine, the actual processing data are displayed on the monitor. It has manual, automatic, fully automatic control functions, and features dynamic demonstration and digital setting for the process parameters, it is convenient for the operators to understand the operation process clearly. The unique system optimization and superior mechanical properties guarantee a smooth running with accuracy.
