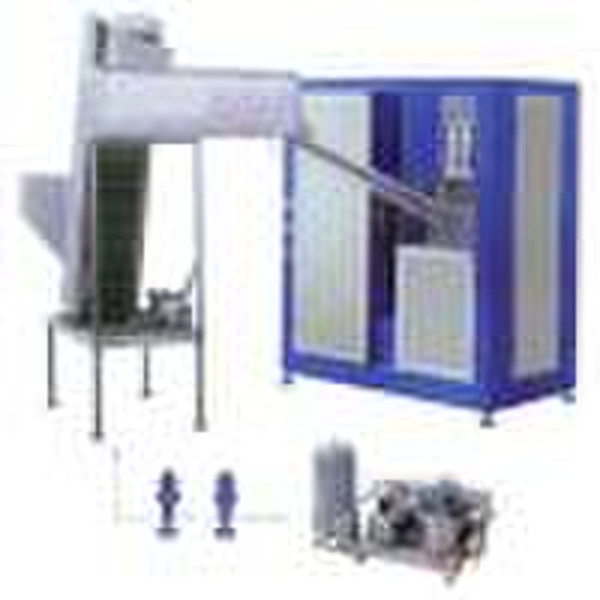

PET Bottle Blow Molding Machine

This automatic PET bottle blow molding machine is for PET bottles with characteristic of easily operation and maintenance. It can save 25% power consumption with circle heating system, and 20% pneumatic power. We can supply complete system including of high/low pressure air compressor, air dryer, air filter and mould correspondingly. Main specifications: 1) Suitable volume: 0.1 - 6L PET bottles 2) Hourly production: 0.5L / 1.5L: 1,000pcs/h 3) Material: PET preform 4) Max. dimensions of mould plate: 387 x 219mm 5) Clamping force: 500KN 6) Air pressure for blowing: 1.5 - 4.0MPa 7) Length of bottle: max. 360mm 8) Power: 8kW / 380V / 50Hz / 60Hz
